ATIE Pool Valve Diverter Kit 4720 Replacement for Jandy 2 Port or 3 Port Never Lube Pool Diverter Valve Standard Diverter 4720 (2 Pack)

Brand: ATIE

Features:

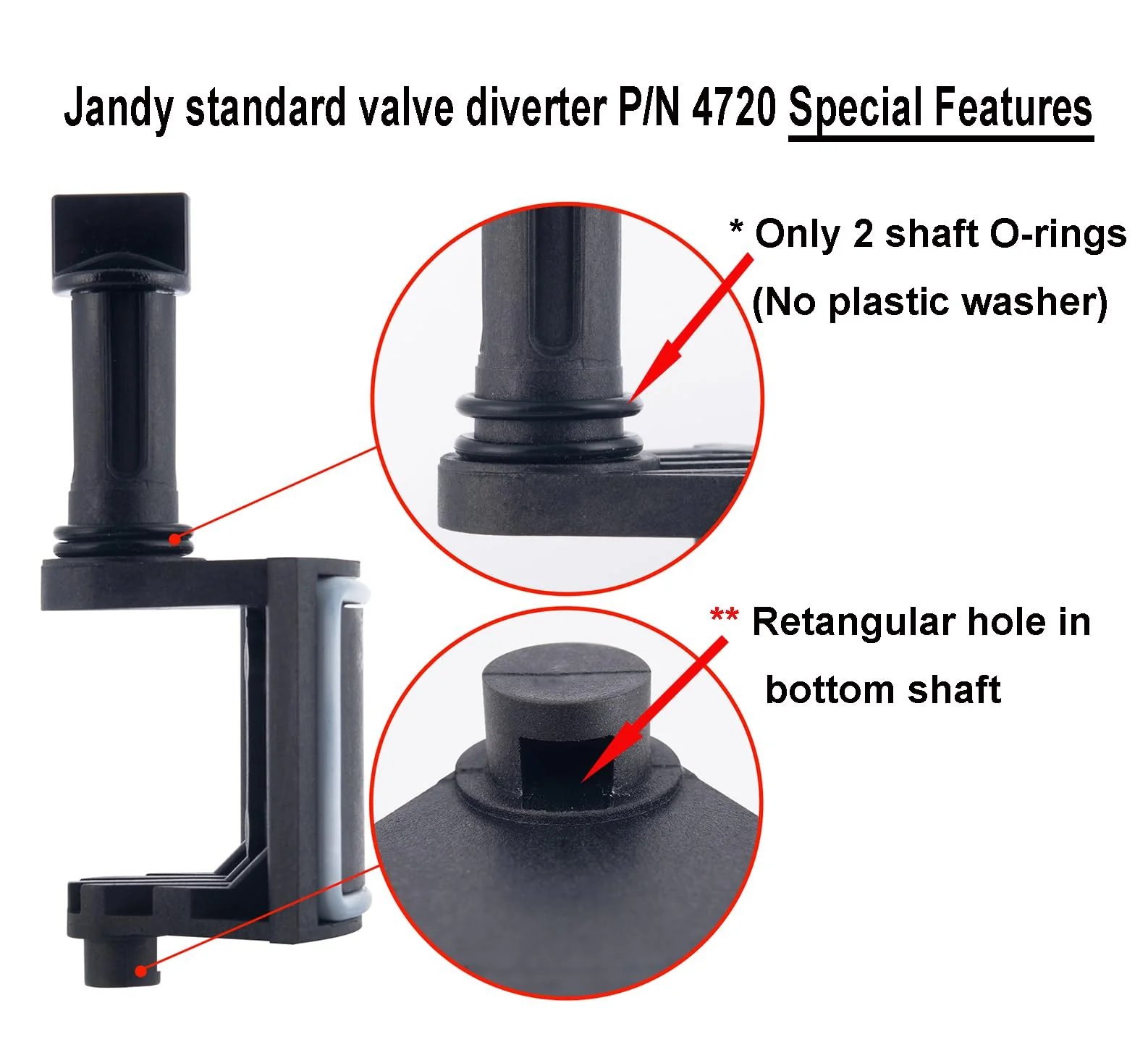

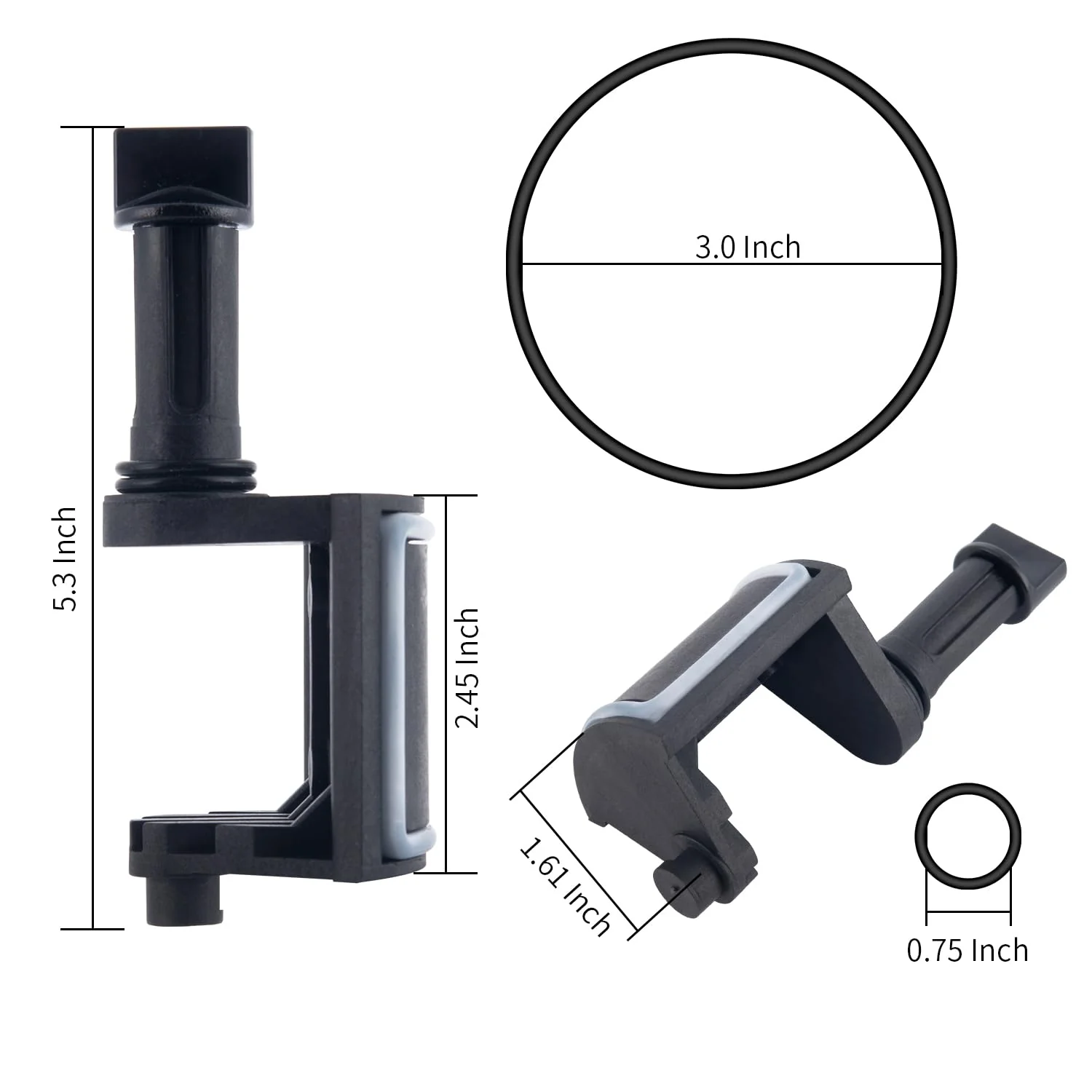

• * Please take following steps to check for compatibility before buying this part. 1, look at valve's body to see the Brand name, Logo, P/N, or Labels on it. For Jandy valve, the brand name such as "never lube Jandy Valve" is stamped on the valve handle. The P/N label is affixed on the bottom of valve housing. 2, It is strongly recommended to measure your diverter size. Remove 8 screws on cover, lifting the cover and diverter, measure the diverter's dimension. Refer to product size image on detail pages to determine if your existing diverter matches the size this diverter 4720. 3, Diverter 4720's Special Features: shaft bottom has a recutangular hole, the shaft top has only 2 shaft O-ring

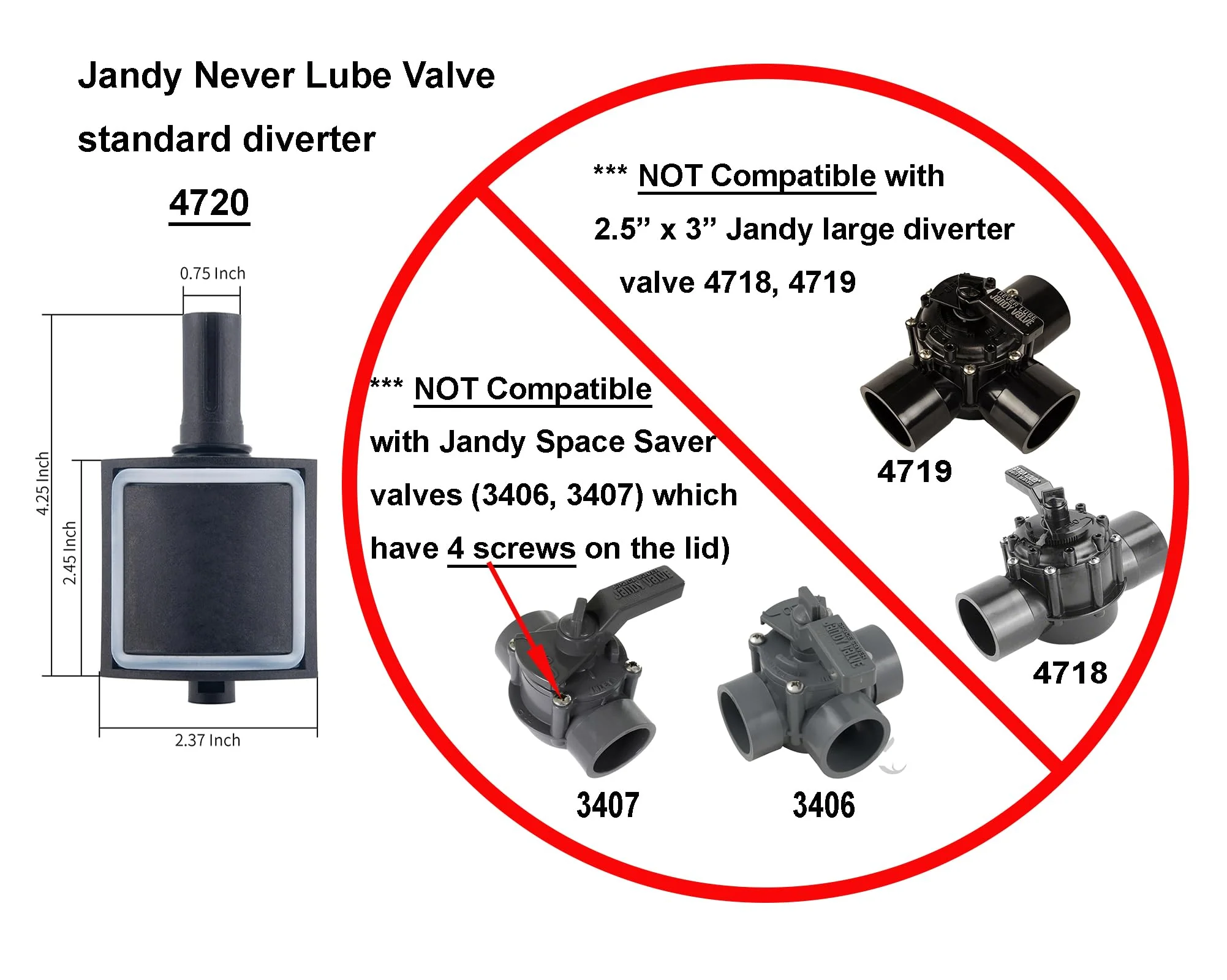

• ** NOT COMPATIBLE with Jandy Space Saver valves (P/N: 3406, 3407) and Jandy 2.5" x 3" Large Diverter valves (P/N: 4718, 4719). If your Jandy valve cover has ONLY 4 screws on it, you have Jandy Space Saver valves. If you have 2.5" or 3" plumbing directly connects to the valve, you may have Jandy large diverter valve. This Jandy valve standard diverter P/N 4720 does not fit them.
• *** NOT COMPATIBLE with other brands of pool diverter valves such as Pentair or Hayward. Please check the brand name on the pool valve handle before you purchase this product. If you see "Pentair" or "H" (standards for Hayward) logo stamped on the diverter valve handle, DO NOT purchaes this product. They are not interchangeable with Jandy pool valve diveretr.

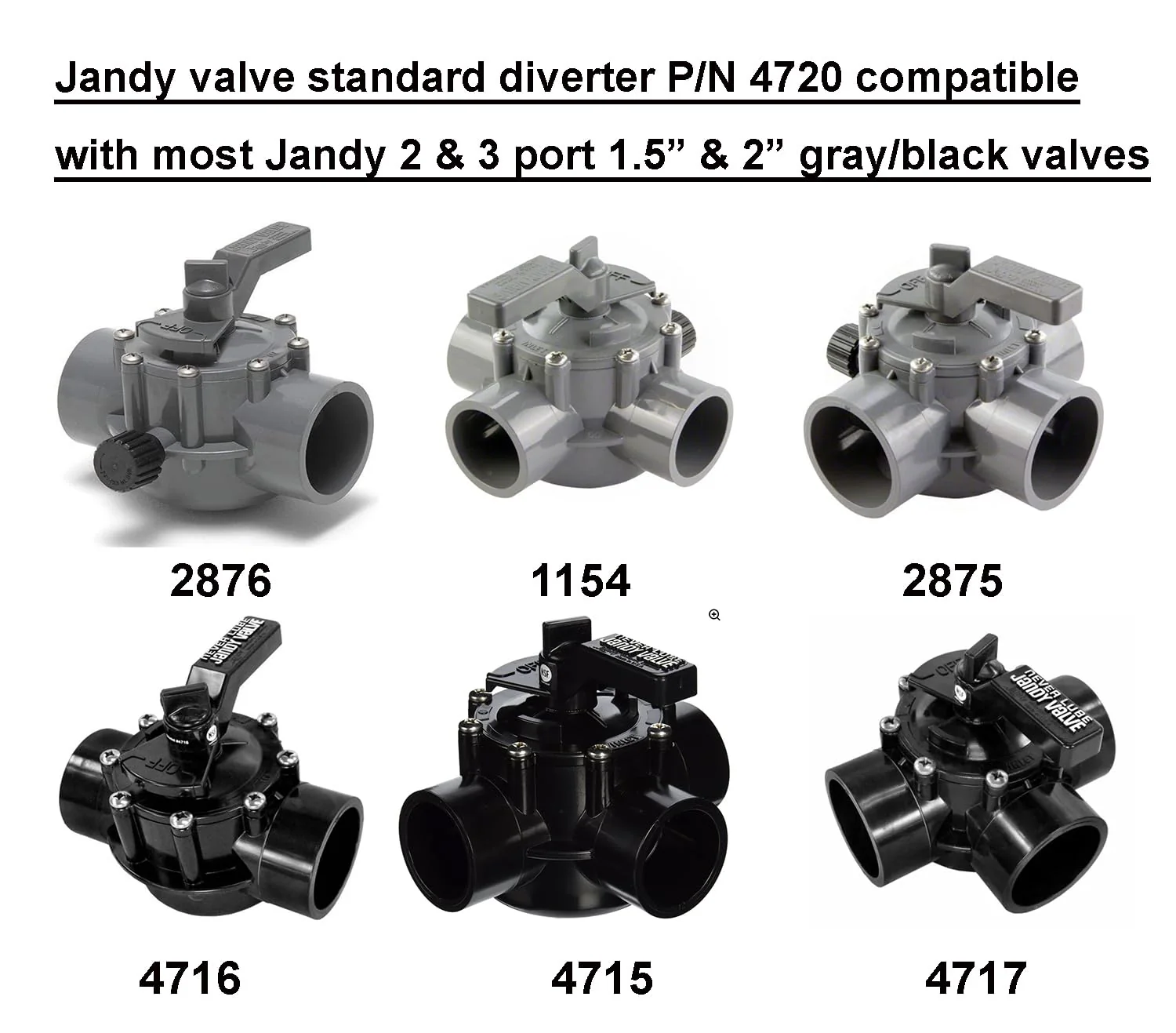

• Replace Jandy Never Lube valves Standard Diverter P/N 4720. Compatible with most Jandy 2 & 3 Port 1.5" or 2" BLACK valves and Jandy 2 & 3 Port 1.5" or 2" GRAY valves
• Replace Jandy Never Lube valves Standard Diverter P/N 4720. Compatible with most Jandy 2 & 3 Port 1.5" or 2" BLACK valves and Jandy 2 & 3 Port 1.5" or 2" GRAY valves

model number: PST-4720-2

Part Number: PST-4720-2

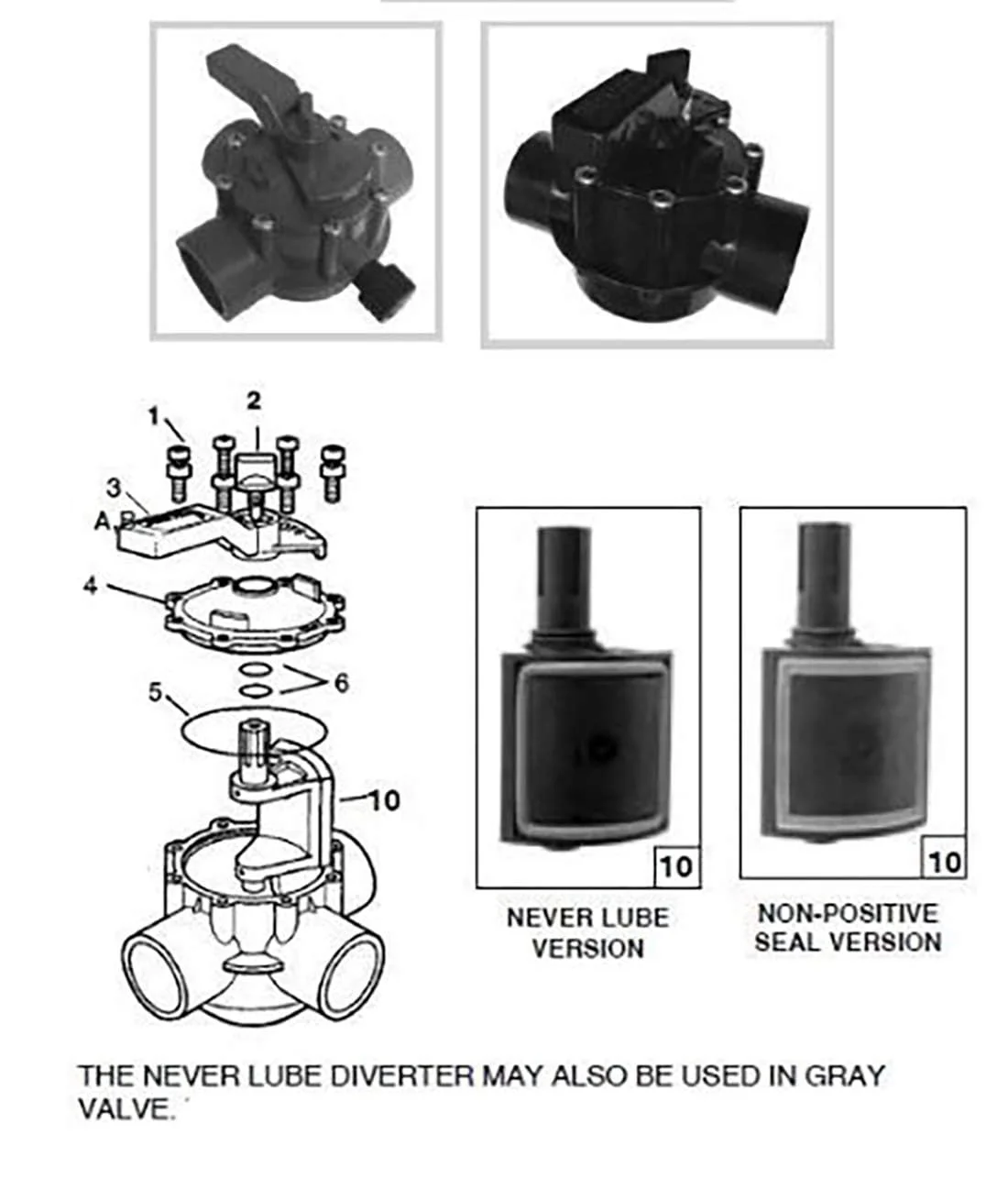

Details: This Never Lube valve diverter replacement Part No. 4720 is compatible with most Jandy 2 & 3 port 1.5" and 2" diverter valves. The following are some of compatible valve part numbers: Jandy Never Lube Positive Seal 1.5in - 2in Black CPVC 3 - Port valve - 4715 Jandy Never Lube Positive Seal 2in - 2.5in Black CPVC 2 - Port valve - 4716 Jandy Never Lube Positive Seal 2in - 2.5in Black CPVC 3 - Port valve - 4717 Jandy Never Lube Positive Seal 1.5in - 2in Black CPVC 2 - Port valve - 4724 Jandy Positive Seal 1.5in - 2in Gray CPVC 3 - Port valve - 1154 Jandy Positive Seal 1.5in - 2in Gray CPVC 2- Port valve - 1157 Jandy Positive Seal 2in - 2.5in Gray CPVC 3 - Port valve - 2875 Jandy Positive Seal 2in - 2.5in Gray CPVC 2 - Port valve - 2876 Jandy Non-Positive Seal 2in - 2.5in Gray CPVC 3 - Port valve - 2877 Jandy Non-Positive Seal 1.5in - 2in Gray CPVC 3 - Port valve - 3344 Jandy Non-Positive 1.5in - 2in 90 Degree 3 - Port Gray CPVC Valve - 4367 Jandy Non-Positive 1.5in - 2in 90 Degree 2 - Port Gray CPVC Valve - 4369

Package Dimensions: 7.3 x 6.4 x 2.1 inches
