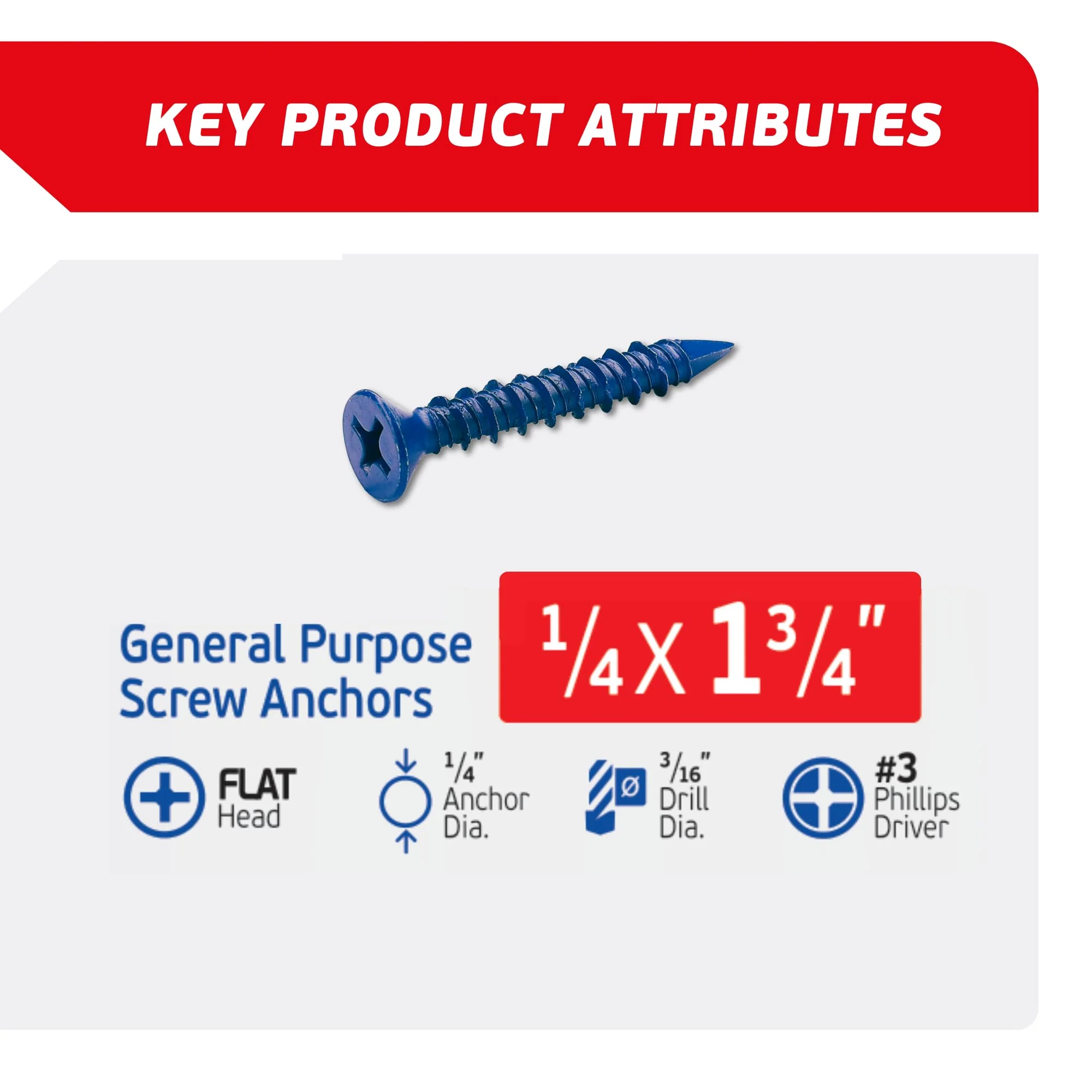

FixMaster 1/4 x 1-3/4" Countersunk Phillips Flat Head Blue Concrete Screw Anchors (100 pcs Screw Kit) with one Screwdriver and Drill Bit for Concrete, Masonry, Block, Brick and Wood Fastening

Brand: FixMaster

Color: Blue

Features:

• [PRODUCT] Includes 100 1/4 inch [8/32"] (#14 screw) x 1-3/4 inch long Screw Anchors, 1 Drill Bit & 1 Screwdriver Bit so you are ready to tackle your Commercial, DIY & Home improvement jobs - Heavy Duty General Purpose Versatile Fixing Screws
• [APPLICATIONS] Concrete Screws can be used for Applications including Concrete Block, Cinder Block, Mortar, Masonry, Brick, Wood, Drywall & Stucco
• [HIGH QUALITY] A High and Low Thread Design along with Wide Serrated Threads provides a Faster Drilling Speed allowing the Screw Anchor to Quickly Penetrate any Base Material
• [SELF-TAPPING TECHNOLOGY] A Diamond Point Designed Screw Tip Threads Directly into Base Materials, Eliminating the need for other Anchors or Screws
• [CORRSOION RESISTANT] A Blue Epoxy Coating can Withstand Hydrochloric Acid Corrosion for 1,000 Hours, Ensuring Long Lasting Durability. Anti-Corrosion Coating is especially useful in Hurricane or Damp Environments
• [MATERIAL] Manufactured from Heat-Treated 1022A High Strength Carbon Steel for Strength and Durability
• The Head style is Countersunk Phillips Flat - This will allow the fastener head to lay flush in the base material. The Diameter is 1/4", The Overall Length is 1.75", The Thread Length is 1.17", The Total number of Threads is 8. [Setting Driver Required & included with each box of Anchors] FOR 1/4" - a 5/16" nut driver is required for driving the anchor into the base material. FOR 1/4" - Each Tapcon style Blue Screw requires a 3/16" hole to be drilled in the base material being used (Concrete, Block, Brick & Wood). The hole should be drilled with the carbide tipped bit that is included in each box of anchors.
• [Minimum Embedment] The Minimum Anchor embedment into the Base Material is 1". This means the Anchor must be installed so that a minimum of 1" of the anchor is embedded into the Base Material. [Fixture Hole Diameter] FOR 1/4" - The hole in the Fixture or Base Material being Fastened must be Larger than the designated diameter of the anchor. The 1/4" diameter anchor requires the hole in the fixture to be 5/16".
• [Spacing between Anchors] Each anchor must be spaced a Minimum Distance of 4" from each other Anchor when measured center to center. [Edge Distance] FOR 1/4" - Each anchor Cannot be installed any closer than 3" from an unsupported edge of the concrete. [Maximum Fixture Thickness] The Maximum Fixture Thickness or the Maximum Thickness of the Material being Fastened for a anchor is .25" to .75". This will ensure that the Minimum Embedment of 1" will be met

model number: CSF14134-100

Part Number: CSF

Package Dimensions: 5.0 x 3.4 x 2.4 inches
